Vibration is a common issue in Vertical Machining Center (VMC) CNC operations that can significantly impact the quality of machining, tool life, and overall productivity. As a VMC CNC supplier, I understand the challenges that operators face when dealing with excessive vibration. In this blog, I will share some effective strategies to reduce the vibration of VMC CNC machines.
Understanding the Causes of Vibration in VMC CNC Machines
Before we can address the issue of vibration, it's essential to understand its root causes. Vibration in VMC CNC machines can be attributed to several factors, including:
- Imbalanced Tooling: An imbalanced tool can cause significant vibration during operation. This imbalance can occur due to uneven wear, improper installation, or manufacturing defects.
- Machine Misalignment: If the VMC CNC machine is not properly aligned, it can lead to vibration. Misalignment can occur in the linear guides, ball screws, or spindle, and it can be caused by factors such as improper installation, wear and tear, or external forces.
- Cutting Parameters: Incorrect cutting parameters, such as feed rate, spindle speed, and depth of cut, can also cause vibration. Using the wrong parameters can put excessive stress on the tool and the machine, leading to vibration.
- Workpiece Stability: If the workpiece is not securely clamped or supported, it can vibrate during machining. This vibration can be transferred to the machine, causing further issues.
- Environmental Factors: External factors, such as floor vibrations, temperature changes, and humidity, can also affect the performance of the VMC CNC machine and cause vibration.
Strategies to Reduce Vibration in VMC CNC Machines
Now that we understand the causes of vibration, let's explore some strategies to reduce it.
1. Tooling Selection and Maintenance
- Balance the Tool: Ensure that all cutting tools are properly balanced before use. This can be done using a tool balancer, which measures the imbalance of the tool and allows you to make adjustments. Regularly check the balance of the tools, especially after regrinding or replacing them.
- Choose the Right Tool: Select cutting tools that are appropriate for the material and the machining operation. Using the wrong tool can lead to excessive vibration and poor surface finish. Consider factors such as tool geometry, coating, and material when choosing a tool.
- Maintain the Tool: Keep the cutting tools in good condition by regularly inspecting them for wear and damage. Replace worn or damaged tools promptly to prevent vibration and ensure consistent machining performance.
2. Machine Alignment and Maintenance
- Align the Machine: Regularly check and align the VMC CNC machine to ensure that all components are properly positioned. This includes aligning the linear guides, ball screws, and spindle. Use precision alignment tools and follow the manufacturer's guidelines for alignment.
- Lubricate the Machine: Proper lubrication is essential for the smooth operation of the VMC CNC machine. Lubricate all moving parts, such as the linear guides, ball screws, and spindle bearings, according to the manufacturer's recommendations. This will reduce friction and wear, which can help prevent vibration.
- Inspect and Maintain the Machine: Regularly inspect the VMC CNC machine for any signs of wear, damage, or loose components. Tighten any loose bolts or nuts, and replace worn or damaged parts as needed. This will help ensure the stability and reliability of the machine.
3. Optimize Cutting Parameters
- Select the Right Cutting Parameters: Choose the appropriate feed rate, spindle speed, and depth of cut for the material and the machining operation. This can be determined through trial and error or by referring to cutting parameter charts provided by the tool manufacturer. Using the right parameters will help reduce vibration and improve the quality of the machining.
- Use Adaptive Control Systems: Some VMC CNC machines are equipped with adaptive control systems that can automatically adjust the cutting parameters based on the machining conditions. These systems can help optimize the cutting process and reduce vibration.
4. Ensure Workpiece Stability
- Securely Clamp the Workpiece: Use appropriate clamping devices to securely hold the workpiece in place during machining. This will prevent the workpiece from vibrating and ensure consistent machining results.
- Support the Workpiece: If the workpiece is large or has an irregular shape, it may require additional support to prevent vibration. Use fixtures or supports to provide additional stability to the workpiece.
5. Minimize Environmental Factors
- Isolate the Machine: Place the VMC CNC machine on a stable foundation or use vibration isolation pads to reduce the impact of floor vibrations. This will help minimize the transfer of external vibrations to the machine.
- Control the Environment: Maintain a stable temperature and humidity level in the machining environment. Extreme temperature changes and high humidity can affect the performance of the machine and cause vibration. Use air conditioning or dehumidifiers to control the environment as needed.
Benefits of Reducing Vibration in VMC CNC Machines
Reducing vibration in VMC CNC machines offers several benefits, including:
- Improved Surface Finish: By reducing vibration, you can achieve a smoother surface finish on the machined parts. This is especially important for applications where a high-quality surface finish is required, such as aerospace and medical industries.
- Extended Tool Life: Excessive vibration can cause premature wear and damage to the cutting tools. By reducing vibration, you can extend the life of the tools, which will save you money on tool replacement costs.
- Increased Productivity: When the VMC CNC machine is operating smoothly without vibration, it can run at higher speeds and feed rates, which will increase productivity. This will allow you to produce more parts in less time.
- Enhanced Machine Reliability: Reducing vibration can also improve the reliability of the VMC CNC machine. By minimizing the stress on the machine components, you can reduce the risk of breakdowns and downtime, which will ensure continuous production.
Conclusion
Vibration is a common issue in VMC CNC machines that can have a significant impact on the quality of machining, tool life, and productivity. As a VMC CNC supplier, I recommend implementing the strategies outlined in this blog to reduce vibration and improve the performance of your machines. By selecting the right tooling, maintaining the machine, optimizing cutting parameters, ensuring workpiece stability, and minimizing environmental factors, you can achieve a smoother and more efficient machining process.

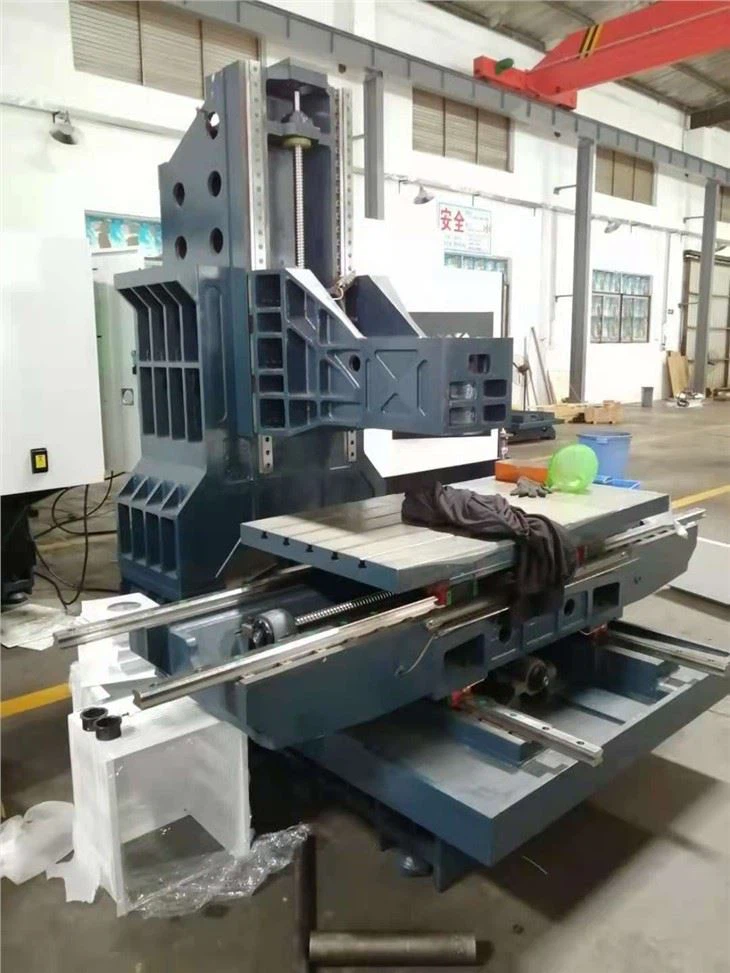

If you are interested in VMC Cnc Milling Machine, Small Cnc Milling Machine For Metal, or CNC Milling Machine Gsk 1165, or if you have any questions about reducing vibration in VMC CNC machines, please feel free to contact us for more information and to discuss your specific requirements. We are here to help you optimize your machining operations and achieve the best results.
