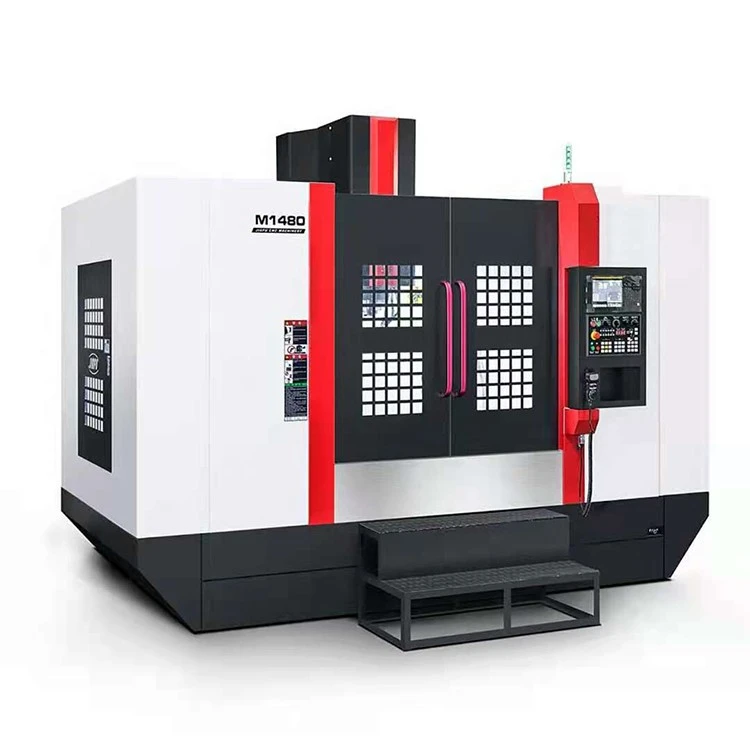

Automated Cnc Milling Machine
● TRAVEL
X-axis travel mm 1500
Y axis travel mm 800
Z-axis travel mm 700
Spindle nose to work surface mm 160-860
Spindle center to column guide mm 855
● work table
Table Dimensions (L x W) mm 1600*800
T-slot (number-size*spacing) mm 7*22X110
maximum load Kg 2000
Dongguan Jide Precision Machinery Technology Co., Ltd. is one of the most credible manufacturers and suppliers of automated cnc milling machine in China. If you're going to wholesale high quality automated cnc milling machine made in China, welcome to get quotation and free sample from our factory. All customized products are with high quality and competitive price.
Machine parameter
|
|
Parameter |
Unit |
V-1580 |
|
|
● |
TRAVEL |
|
|
|
|
|
X-axis travel |
mm |
1500 |
|
|
|
Y axis travel |
mm |
800 |
|
|
|
Z-axis travel |
mm |
700 |
|
|
|
Spindle nose to work surface |
mm |
160-860 |
|
|
|
Spindle center to column guide |
mm |
855 |
|
|
● |
work table |
|
|
|
|
|
Table Dimensions (L x W) |
mm |
1600*800 |
|
|
|
T-slot (number-size*spacing) |
mm |
7*22X110 |
|
|
|
maximum load |
Kg |
2000 |
|
|
L |
Spindle |
|
|
|
|
|
Spindle speed |
rpm |
8000 |
|
|
|
Spindle motor power |
kw |
15 |
|
|
|
Spindle taper hole (model/installation size) |
|
BT50（155） |
|
|
|
XYZ motor |
kw |
3kw/3kw/3kw |
|
|
● |
feed |
|
|
|
|
|
G00 rapid traverse (X axis) |
m/min |
20 |
|
|
|
G00 rapid traverse (Y axis) |
m/min |
20 |
|
|
|
G00 rapid traverse (Z axis) |
m/min |
24 |
|
|
|
G01 Cutting feed |
m/min |
10/10/10 |
|
|
● |
machine precision |
|
|
|
|
|
positioning accuracy |
mm |
0.005/300 |
|
|
|
Repeatability |
mm |
0.003/300 |
|
|
● |
other |
|
|
|
|
|
Floor space (length) |
mm |
3950 |
|
|
|
(width) |
mm |
3000 |
|
|
|
Machine height (height) |
mm |
3200 |
|
|
|
machine weight |
Kg |
15000 |
|
|
|
vacuum packaging |
/ |
YES |
|
|
|
Fixed wooden frame |
/ |
YES |
|
■automated cnc milling machine Configuration
1. The three-axis adopts Taiwan-made "Yintai PMI or Shangyin HIWIN" C3 ball screw;
6. BT50-$155-8000rpm belt type KENTURN
2. The three shafts adopt P4 bearings;
7. Knife cylinder;
3. The three-axis adopts Taiwan-made "Shangyin or Yintai" roller track;
8. Conscious main oiler
4. The three-axis adopts Taiwan "KENTURN" coupling;
9. Toolbox and adjustment tools
5. The three-axis adopts Taiwan "KENTURN" protective cover
