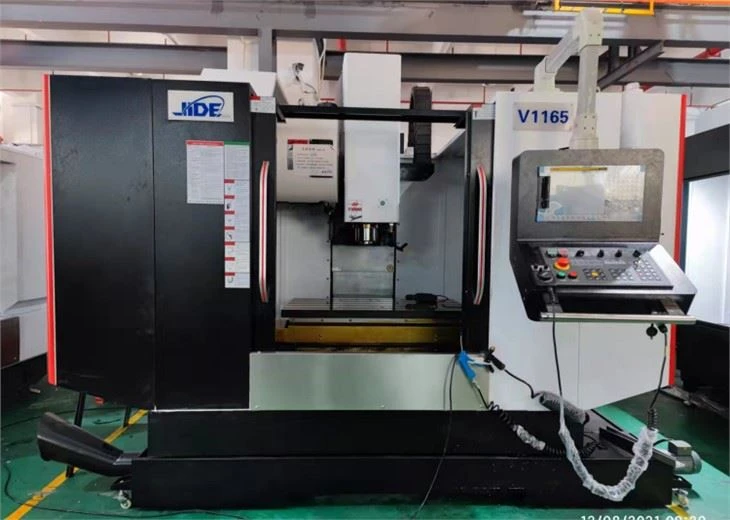

Heavy Duty Vertical Milling Machine vmc800

Dongguan Jide Precision Machinery Technology Co., Ltd. is one of the most credible manufacturers and suppliers of heavy duty vertical milling machine vmc800 in China. If you're going to wholesale high quality heavy duty vertical milling machine vmc800 made in China, welcome to get quotation and free sample from our factory. All customized products are with high quality and competitive price.

Heavy Duty Vertical Milling Machine vmc800 parameters :

As a high-precision and high-efficiency processing equipment, Heavy Duty Vertical Milling Machine vmc800 have become an indispensable part of industrial production. The products produced by CNC machining centers have the following characteristics:

First, high precision. CNC machining centers can process within an extremely precise range and have a high repeatability. Therefore, the products produced are full of precision and quality assurance.

Second, high efficiency. CNC machining centers can realize high-speed automatic processing and greatly improve production efficiency. Compared with traditional manual processing methods, CNC machining centers are not only faster, but also more accurate.

Third, strong flexibility. CNC machining centers can process parts with complex shapes and high precision, and can perform various cutting, grinding, drilling and other processing operations, with strong versatility.

Fourth, cost savings. CNC machining centers can automate processing, reduce labor costs, and at the same time greatly reduce scrap rates and reduce costs.

To sum up, as a cost-effective processing equipment, CNC machining center has the characteristics of high precision, high efficiency, strong flexibility and cost saving. It will provide more efficient and precise production methods for the manufacturing industry, promote the process of industrialization, and make more contributions to the development of society.

control  system FANUC 0IMF/SIEMENS 828D available

machine be installed with 24 ARM TYPE tool magazine

spindle oil cooling device

Specifications vmc850

Taiwan spindle is a precision component that plays a critical role in the performance of CNC machine tools. The spindle is responsible for rotating the cutting tools and transferring power to them from the motor. As such, a high-quality spindle is essential for achieving accuracy, precision, and efficiency in manufacturing processes.

Taiwan spindles are renowned for their exceptional performance and durability. They are manufactured using top-quality materials and cutting-edge technology, resulting in a superior product that is capable of withstanding the rigors of prolonged use. The precision engineering and careful attention to design ensure that Taiwan spindles are reliable, efficient, and long-lasting.

One of the key features of Taiwan spindles is their adjustable speed, which enables machine operators to select the most appropriate speed for the job at hand. The speed range of Taiwan spindles is usually wide, spanning from a few hundred revolutions per minute to tens of thousands of revolutions per minute. This flexibility allows them to work with a wide range of materials and cutting tools, ensuring optimal results in every situation.

In addition to their high performance, Taiwan spindles are also user-friendly. They are easy to install, operate, and maintain, making them an ideal choice for both novice and experienced CNC machine operators. The compact size and light weight of Taiwan spindles mean they can be used in a variety of applications, from small workshops to large industrial facilities.

In conclusion, Taiwan spindles are an excellent choice for those seeking a high-quality, dependable spindle for their CNC machine tools. With their precision engineering, robust performance, and user-friendly design, they are sure to meet and exceed expectations. By selecting a Taiwan spindle, you can be confident that your machine tools will perform at their best, giving you the precise and efficient results you need.

(Heavy duty gantry milling machine machining machine parts guides,make sure high precision .)

In response to the new requirements of fixtures, the following aspects should be met in fixture design:

1. Eliminate the movement gap of the fixture components as much as possible in the clamped state, and realize self-locking.

The existence of machining gap is the root cause of the loss of rigidity. The relative movement of the coupling parts of the fixture parts requires a gap, which will change continuously with the size and direction of the cutting force. At present, the small hydraulic or pneumatic clamp cylinders widely used in the field of CNC machining center industry, these two are very good modules for achieving lightweight fixtures.

2. Multi-point intensive clamping

In order to overcome the cutting force, sufficient clamping force must be ensured. However, the traditional clamp structure often does not have enough clamping points. As shown in the figure below, the workpiece shakes 0.5mm during the actual machining process, but the force of only 4 clamping points cannot guarantee that the workpiece can overcome the cutting force without deforming. With the wide application of hydraulic and pneumatic technology today, it is technically easy to achieve multi-point intensive clamping.

3. As far as possible to achieve clamping in the original state of the workpiece

Try to ensure that only the cutting stress is released after the workpiece is processed, and there is no recovery of elastic deformation. For example, the use of elastic sleeves to clamp round workpieces changes the special shape of the workpiece to achieve full contact, while the use of hydraulically controlled multi-point intensive clamping, the clamping of the workpiece does not change the special shape of the workpiece.

4. Large special-shaped workpiece fixture

The basic idea of the cross-type design of the chuck fixture for large rotating parts is to use the accuracy of the machine tool table itself to ensure the positioning accuracy and automatic operation of the fixture, avoiding the trouble of independent jaw alignment and the disadvantages of high overall chuck cost.

The development of fixture technology determines the height of CNC machining center technology, stable performance, and more comprehensive performance fixtures will be used in the future machining center field.

Structural features of Heavy Duty Vertical Milling Machine vmc800:

1. Adopting Taiwan's high-quality 24 arm type tool magazines, with accurate tool change, short time and high efficiency. It has been tested by millions of operations and meets the reliability requirements; it can be equipped with a propelling hat-type or disc-type tool magazine, and a propelling hat The tool magazine is equipped with a damping structure, which can reduce the impact during movement and ensure the service life of the tool magazine;

2. The machine tool operating system is designed with ergonomic principles, the operating box is set independently, close to the operator, and equipped with a handheld electronic handwheel operating box, which is convenient for tool setting;

3. Adopting advanced centralized automatic lubrication device, timing and quantitative automatic intermittent lubrication, stable and reliable work;

4. The machine tool is equipped with a well-known CNC control system with complete functions, simple operation, stable and reliable accuracy;

5. The electrical system adopts a separate design structure of the transformer and the control system to reduce heat generation, reduce temperature changes in the electrical box, and improve the service life of electrical parts and the reliability of system control;

Note: Due to differences in configuration, special orders, numerical control systems and continuous improvement of products, some technical parameters will be affected. Please verify according to the actual situation when ordering. Please understand the inconvenience!

Industrial samples produced by cnc machine ,like press mold.

CNC Machine  can be used in aerospace, medical, mold, communication and other manufacturing.
