Vertical Machining Center 1165

Dongguan Jide Precision Machinery Technology Co., Ltd. is one of the most credible manufacturers and suppliers of vertical machining center 1165 in China. If you're going to wholesale high quality vertical machining center 1165 made in China, welcome to get quotation and free sample from our factory. All customized products are with high quality and competitive price.

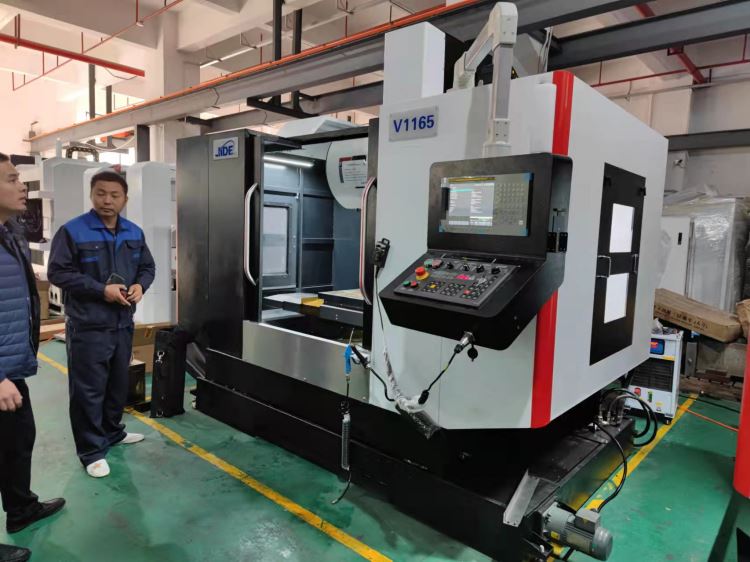

Vertical machining center 1165 adopts high-precision linear rails and lead screws. The machine tool has better dynamic response, can realize high-speed cutting, low-speed no creep, and is widely used in precision parts, 3C products, hardware, auto parts, and medical equipment industries.

*The spindle adopts a group of high-speed spindle unit, the spindle adopts BT40-12000r/min direct coupling head, the front end of the spindle adopts a labyrinth design, and the spindle has an air curtain protection function to prevent cutting fluid from entering the spindle bearing.

*Equipped with positive displacement and forced lubricating oil system to ensure good lubrication of all moving parts of the machine tool.

*The machine tool chip removal standard is equipped with sloped rear rows on both sides, rear water tank design, humanization, high efficiency, double-layer water tank filter system structure, and provide good cutting fluid for workpiece processing.

* Equipped with high-performance Mitsubishi M80B CNC system, which ensures machine tool control stability and ensures the CNC machining functions and auxiliary functions required by users.

*Working conditions

(1) Three-phase AC power supply: 380V±5%; 50Hz±1Hz, main power line 8mm² or more, ground wire 8mm² or more

(2) Ambient temperature: 8～40Cº

(3) Relative humidity: ≤80%

(4) Keep away from the light source, vibration source and heat source, away from high-frequency generators, discharge motors, electric welding machines, etc., to avoid electrical interference and cause the NC system of the machine tool to malfunction.

*The large basic parts are all cast with high-quality resin sand modeling and high-strength cast iron materials, so that the machine tool has high rigidity and stable precision.

*The three-axis guide rail adopts No. 45 large linear rail to carry, high rigidity, low friction and low noise.

*Large diameter C3 grade screw rod, with pre-tensioned structure, eliminates part of the thermal extension, and the screw bearing adopts self-lubricating to extend the life of the bearing.

*The tool magazine adopts the 24 tool arm type tool magazine of Taiwan Group, which is reliable in quality and stable in performance.

*The structure of the whole machine is fixed column type and cross sliding table structure. The fuselage adopts a super large stable base, high rigidity and large span herringbone column, high-speed cutting without vibration or deformation.

*The whole machine is fully enclosed and protected, the machine is beautiful in appearance, easy to operate and maintain.

1 Mitsubishi M80B CNC system/FANUC 0IMF PLUS/SIEMENS 828D

2 Operation panel

3 Pneumatic system

4 Airsoft

5 Automatic lubrication system

6 Workpiece cooling system

7 Rear water tank

8 Three-axis built-in encoder feedback system

9 Three-axis protective cover

10 Full protection

11 Three-color light

12 Lighting device

13 Basic installation kit

14 Random complete set of standard technical documents

15 Vertical Machining Center 1165  is installed with a Spindle oil cooling device

Packing and delivery time :

Delivery time: 30-45days after deposit

Packing :Standard export package

What processing conditions can the chips of the CNC machining center 850 reflect?

The CNC machining center is a high-speed cutting processing equipment, and a large amount of chips will be generated in the high-speed cutting process. Some chips are smashed into spirals and break when they reach a certain length; some are broken into C-shaped or 6-shaped chips; some are clockwork-shaped chips; some are broken into needles or small pieces, splashing around, affecting safety ; Some strip-shaped chips are entangled on the tool and the workpiece, which is easy to cause accidents. It can be seen that the state of the chips will affect the normal production.

Chip generation is inevitable, and the cutting conditions are different due to different materials. The shape of the chips generated in the cutting process is varied. The shape of chips is mainly divided into four types: band, nodular, granular and crushed, as shown in the figure below.

Banded chips are the most common type of chip. Its inner surface is smooth, and its outer surface is hairy. When processing plastic metals, such chips are often formed under the working conditions of small cutting thickness, high cutting speed, and large tool rake angle. Its cutting process is balanced, the cutting force fluctuation is small, and the machined surface roughness is small. The formation process of banded chips can be divided into three stages:

1. Basic deformation stage: the deformation caused by the chips in the process when the metal of the cutting layer and the cutting edge of the tool start to contact and become chips and separate from the workpiece material;

2. Curling deformation stage: upward curling, lateral curling, A-direction and B-direction conical curling;

3. Additional deformation and breaking stage.

Chip control, also known as chip processing, is generally referred to as "chip breaking" in the factory, which refers to the adoption of appropriate measures in cutting to control the curling, outflow and breaking of chips, so as to form an "acceptable" good chip shape. Reasonable tool cutting zone geometric parameters are the most commonly used method to improve the controllability of chip formation and the reliability of chip breaking. The rake angle is inversely proportional to the chip thickness, and has the best value for different processed materials; the entering angle directly affects the chip thickness and width, and the large entering angle is easy to break the chip; the tool tip arc radius is related to the chip thickness and width and chip flow For direction, a small arc radius is suitable for finishing, and a large radius is suitable for roughing. The width of the chipbreaker is selected in proportion to the amount of feed, the smaller the amount of feed is selected, the narrower the amount of feed is selected; the depth of the chipbreaker is inversely proportional to the amount of feed, the smaller the amount of feed is deep, the larger Choose shallow feed.

Daily maintenance of work lights in cnc machining centers

Work lights are important parts for the entire field of CNC machine tools. On the one hand, it can be used for lighting in places with insufficient light conditions. On the other hand, in some special processing procedures, the work light can also play a role in indicating. The work lights of the machining center are mostly made of LED materials. They are like the glasses of the machining center. So how should such important parts be maintained?

The maintenance of LED work lights is not difficult, as long as they are used correctly daily, the service life of the lamps can be effectively extended to the maximum extent.

Reasonable installation

To use work lights efficiently, the first thing to do is to install them reasonably, which requires a comprehensive consideration. It is necessary to consider whether the lighting range can meet the lighting needs, and place the work lights of the machining center in a suitable position. At the same time, it is necessary to consider the stress condition of the machining center and the arrangement of the line. If the first installation is not good, it will affect the remaining work progress.

Consider the environment

The actual processing conditions and equipment use environment of different customers are also different. The control of these conditions is very important for machining center work lights. Each type of lamp has a different sensitivity to the outside world. For the work light of a machining center, it is necessary to keep it in a normal temperature range as much as possible, so as to ensure its maximum effect.

External cleaning and internal testing

Cleaning is an indispensable part of the maintenance of the work lights of the machining center. This reports that the regular wiping of the lamp mirror, the detection of the internal circuit, the replacement of the circuit switch, etc., are all reasonable prerequisites to ensure that the work lights of the machine tool can keep working as normal as possible.

The maintenance cost of the work lights of the machining center is very low, and the steps are simple and easy to understand. Especially for LED lamps, you only need to install it correctly, wipe regularly and check whether the circuit is normal and whether the switch is in good contact. The Vertical Machining Center 1165 light fixture made of LED material can be used in harsh environments with an average service life of up to tens of thousands of hours.
