Mini CNC Mill

Dongguan Jide Precision Machinery Technology Co., Ltd. is one of the most credible manufacturers and suppliers of mini cnc mill in China. If you're going to wholesale high quality mini cnc mill made in China, welcome to get quotation and free sample from our factory. All customized products are with high quality and competitive price.

Mini CNC Mill  use C3 class Taiwan HIWIN ball screw ,We select good materials, we configure Taiwan HIWIN, GSK truly builds a good CNC machine tool to make the equipment drive high, smooth movement, the efficiency of the transmission system is as high as 90%-98%, and the high-quality wire tapping system is selected, which is traditional 2-4 times of the screw system.Standard XYZ is 3 axis roller type Taiwan HIWIN linear guideway,

SIMENS 828D/FANUC 0ITFβ&FANUC 0ITFα/MITSUBISHI M80A is standard.

Adopts high-strength HT250 cast iron, compact structure, good strength, proper hardness, low friction coefficient, and self-lubricating.very high rigidity ,and high precision.

The mini machine V1380/640/1165/850 quality assurance system, our pursuit of quality and precision, and the unremitting pursuit of quality and precision are our characteristics, and also the characteristics of each of our employees. We have always been adhering to this spirit to produce high-performance products and pass the IS09001 certification. The basic guarantee of our crafts, products and services.

Orbital Straightness Measurement

After each track has been precision-processed, it must be measured by a high-level electronic level. Ensure the accuracy of the track after installation.

Standard test block test

Each machine must be inspected and tested by precision instruments, as well as dynamic cutting experiments that comply with international standards.

The standard test block that has been cut must undergo a three-dimensional measurement to ensure that the accuracy meets the standard.

Orbital Straightness Measurement

Using a circle measuring instrument to calibrate the true circle accuracy and the machine geometric accuracy, this can be used to test

Ensure the movement accuracy of the machine's three-dimensional space

Orbital Straightness Measurement

All machines are lasered in accordance with international standards to ensure the accuracy of the machines

-24T ARM type tool magazine

-3 axes Linear guideway

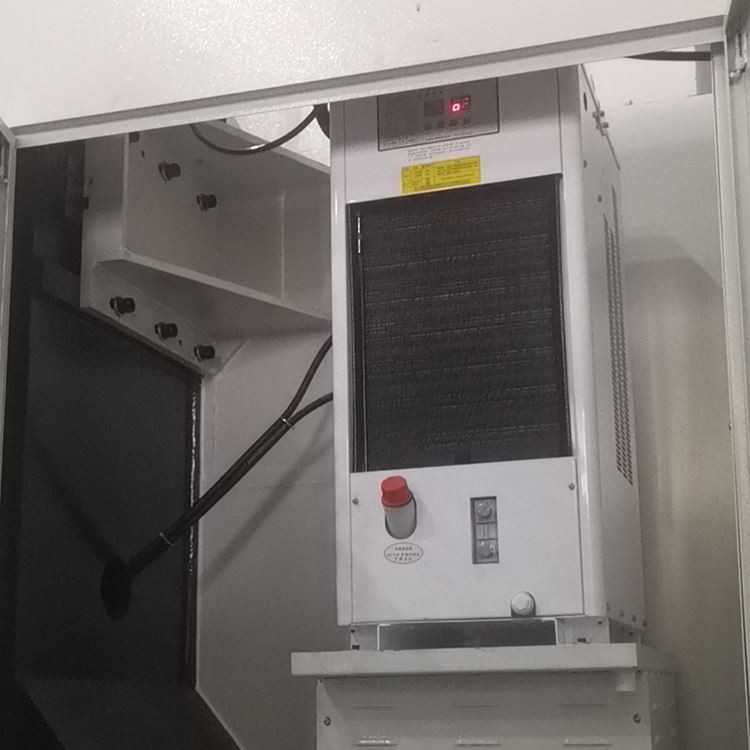

(Standard  install  with spindle oil cooling device,machine installed with 10000rpm or 120000rpm direct type spindle . spindle oil cooling device to protect them)

-GSK

-Chip conveyor

-4th axes

-5th axis

Packing :Standard export wooden package .

Delivery time :30-45days after deposit

Mini CNC Mill main structural features

●The machine body and main components are all high-strength cast iron with stable metallographic structure to ensure the long-term stability of the machine tool;

●The bottom of the column is an A-shaped bridge-span structure, combined with a large box base, which greatly reduces the vibration of the machine body during heavy cutting;

●Pre-stretched precision ball screw drive;

●High-speed, high-precision, high-rigidity spindle unit;

●Oil-water separation design;

●Intermittent automatic lubrication;

●Pneumatic loosening and broaching system
