CNC Vertical Machining

Dongguan Jide Precision Machinery Technology Co., Ltd. is one of the most credible manufacturers and suppliers of cnc vertical machining in China. If you're going to wholesale high quality cnc vertical machining made in China, welcome to get quotation and free sample from our factory. All customized products are with high quality and competitive price.

CNC vertical machining

CNC vertical machining parameters

The heavy main rigidity is strong!

The CNC Vertical Machining Z-direction stroke is extended to 700mm, which is 50Omm compared with other companies' Z-direction stroke. High flexibility

xY/Z enlarged 55 roller rail and thickened 63 lead screw, increasing the rigidity and stability of the machine tool

Adopt Taiwan precision screw, Taiwan Yingxi precision lock nut, screw bearing adopts Japanese NSK bearing, directly connected with flexible platinum device, small backlash, sensitive transmission, high precision

A good circuit is the guarantee of quality

Reduce failure rate

Easy maintenance

Insulated galvanized sheet

Sealed and dustproof

CNC vertical machining features :

1. Machine features

1. The X and Y axes of this machine adopt rolling guides from well-known Taiwanese manufacturers, and the Z axis adopts sliding guides. The headstock and column guides are treated with wear-resistant plastic coating, which greatly reduces the friction between the guides and eliminates the possible crawling phenomenon of the guides. , Improve the movement accuracy of the machine tool.

2. Powerful tool cooling and chip removal function, reliable personal and equipment safety protection measures. The machine tool adopts a closed protective structure, which is conducive to safe production and reduces pollution to the production environment.

3. The key outsourcing parts of the machine tool adopt imported components, so that the whole machine has high reliability and high durability.

4. The castings of this machine tool are made of resin sand, and have undergone two artificial aging treatments, with good stability, high strength, and stable and reliable accuracy. The machine tool column adopts a "her"-shaped structure, and the Y-direction motor is rear-mounted; the base structure increases the machine's leak-proof water extension edge, which improves the waterproof and leak-proof of the whole machine;

Strong rigidity, reliability, stability and durability

HIWIN line rail

HIWIN lead screw

Japan NSK Bearing

Taiwan Knife Cylinder

Schneider Electric

System optional

Standard FANUC OIMF system, optional: Siemens 828D system, Mitsubishi M80

System, GSK, ergonomic interactive interface, with the original servo driver and servo motor, can complete high-precision milling processing requirements, friendly and humanized interactive experience.

Schneider Electric

Adopting French Schneider Electric, the quality is stable and the operation is smooth.

Tool magazine

Taiwan AIMACH, stable, reliable, durable, manipulator tool magazine, fast and accurate tool change

CNC Vertical Machining testing

Level detection

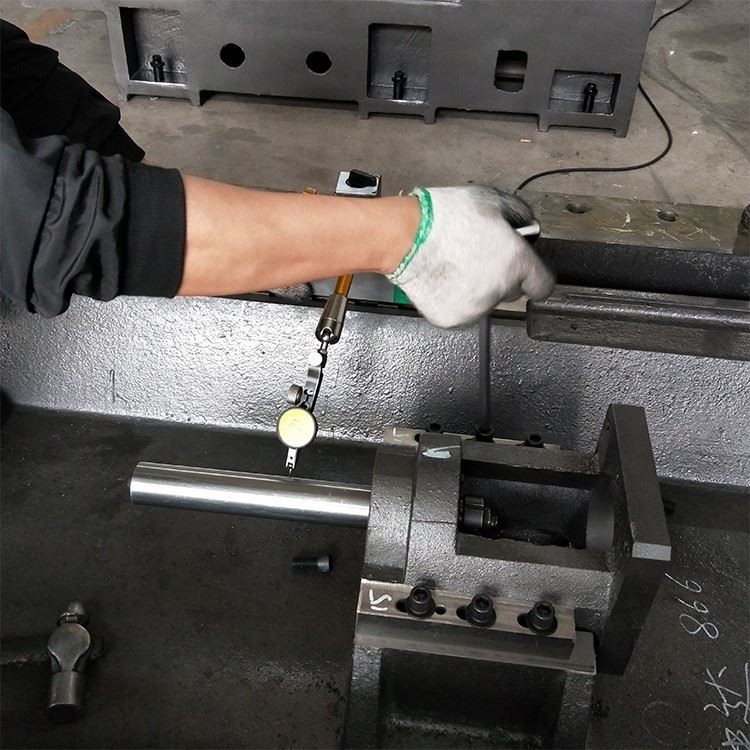

Lead screw inspection

Laser inspection

Manual scraping

Regardless of high-speed or low-speed milling and drilling, the performance of the whole machine can be guaranteed. When running at high speed, there is no resonance phenomenon, and the machining accuracy and surface accuracy are guaranteed.
