Mini Cnc Mill V650
Mini Cnc Mill V650

Mini Cnc Mill V650

Name: China Mini Cnc Mill V650 Suppliers, Manufacturers, Factory - Good Price - Jide
Brand: Jide
SKU: 154629635

X axis 600mm
Y axis 500mm
Z axis 500mm
Distance from spindle nose to worktable 170~620mm
Distance from spindle center to column guide surface 456mm
Workbench area 700*500mm
Maximum load of worktable 350kg
T-slot size (width ﹡ number) 3-18*125
Spindle speed 12000rpm
Spindle specifications BT40

Send Inquiry

Product Introduction

Dongguan Jide Precision Machinery Technology Co., Ltd. is one of the most credible manufacturers and suppliers of mini cnc mill v650 in China. If you're going to wholesale high quality mini cnc mill v650 made in China, welcome to get quotation and free sample from our factory. All customized products are with high quality and competitive price.

Mini Cnc Mill V650 Main configuration

FANUC/SIEMENS/MITSUBISHI system

12000rpm directly connected to the spindle

24 disc tool magazine

Centralized automatic feeding lubrication system

Three-axis lubricating oil independent collection device

Full protection

Machine tool lighting work lights

Three-color warning light

Spindle taper hole clean air

Separate handwheel

Clean the air gun

RS232 interface

Chipping fluid system

Chip Groove

10.4" display

Spindle taper: BT40

Servo transformer

Electrical cabinet cold heat exchanger

Foundation pad iron and adjusting bolt

Random technical paper

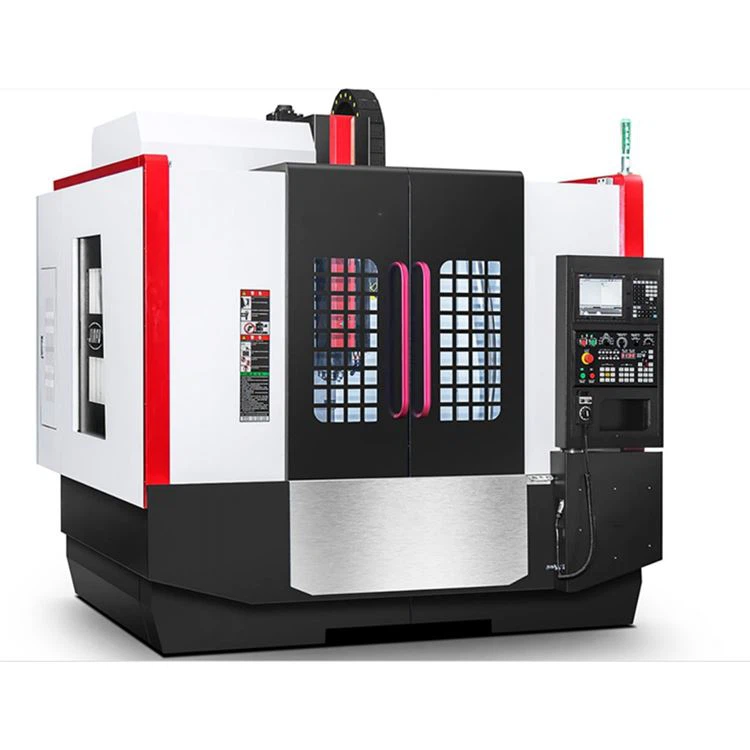

high speed cnc machining

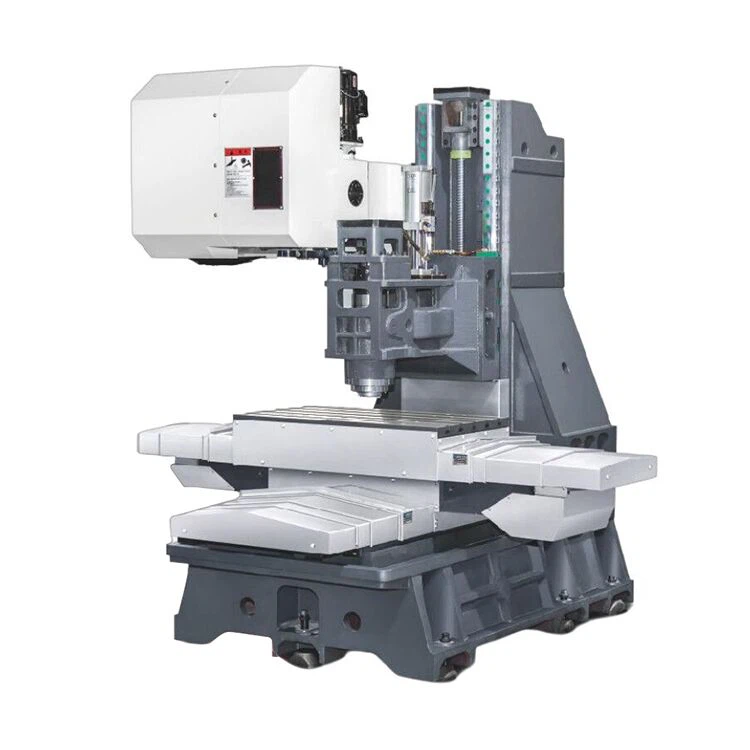

VMC800

Mini cnc mill V650 parameters

Travel	X axis	600mm
	Y axis	500mm
	Z axis	500mm
	Distance from spindle nose to worktable	170~620mm
	Distance from spindle center to column guide surface	456mm
Working table	Workbench area	700*500mm
	Maximum load of worktable	350kg
	T-slot size (width ﹡ number)	3-18*125
Spindle	Spindle speed	12000rpm
Spindle	Spindle specifications	BT40
Control system	Standard configuration	FANUC 0IMF
	X axis servo motor	3
	Y axis servo motor	3
	Z axis servo motor	3KW
	Spindle servo motor	7.5/11KW
Tool magazine	Arm type	24T
Rapid feedrate	Rapid movement rate (X/Y/Z)	48/48/48m/min
Rapid feedrate	Cutting feed rate	10～10000mm/min
Accuracy	Positioning accuracy	JIS±0.005/300
Accuracy	Repeat positioning accuracy	JIS±0.003/300
Machine guard	Full guard
Machine weight	Approx 3.5T
Machine size	Approx 200022002250

Mini Cnc Mill V850 details

Integral casting

The machine bed of the machining center adopts high-quality castings and the whole machine body, with strong rigidity and good stability, herringbone column and vertical frame layout.

The castings are all made of FC30 Meehanite, which has been aging treated, and the surface is manually scraped and polished, with good stability and high strength.

CNC system

The CNC control system of the vertical machining center selects well-known brands such as GSK, SYNTEC, Japan FANUC, and Mitsubishi.

High-stability CNC control system, which has a fully digital structure and powerful processing capabilities, and can control 4 coordinate axes at the same time. It is the preferred operating system for mold processing and high rigidity product processing.

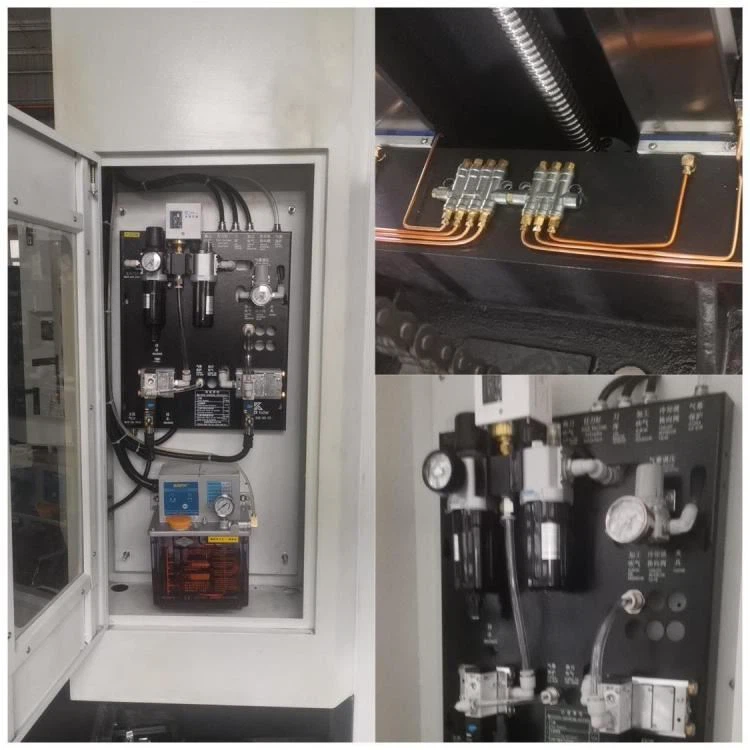

Lubrication system

The positive displacement lubricating oil pump adopts centralized automatic thin oil lubrication for the guide rails, ball screw pairs and support bearings. The lubrication parts are injected regularly and quantitatively to ensure uniform lubrication of each sliding surface, which effectively reduces frictional resistance and improves movement accuracy , To ensure the service life of the ball screw pair and the guide rail.

Lubrication system cnc machine

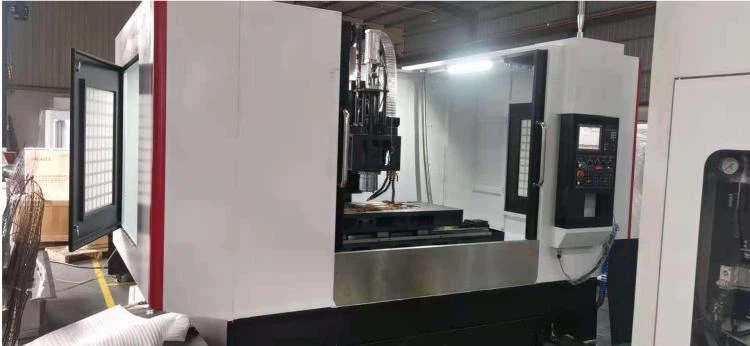

Leakage and light machine test

After the whole machine is completed, it will conduct a water leakage test for over 10 hours of high-speed operation. Prevent chips and coolant from entering the inside of the machine tool, and protect the guide rails and ball screws from wear and corrosion. The light machine runs at high speed, and it is fully roasted and inspected by laser.

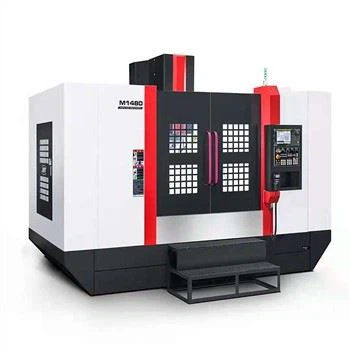

milling machine 1370
