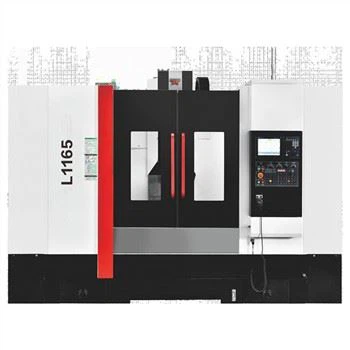

Fanuc Cnc Milling Machine
Work surface size mm 1000×600
Work table load g 800
Table T-slot (number-size ×spacing) mm 5- 18×100
Left and right stroke (X) mm 850
Front and rear travel (Y) mm 600
Up and down stroke (Z) mm 600
Dongguan Jide Precision Machinery Technology Co., Ltd. is one of the most credible manufacturers and suppliers of fanuc cnc milling machine in China. If you're going to wholesale high quality fanuc cnc milling machine made in China, welcome to get quotation and free sample from our factory. All customized products are with high quality and competitive price.
Machine parameter
|
Item |
Unit |
Parameter |
|
|
Control system |
Control system |
set |
FANUC 0IMF |
|
workbench |
Work surface size |
mm |
1000×600 |
|
|
Work table load |
|
800 |
|
|
Table T-slot (number-size ×spacing) |
mm |
5- 18×100 |
|
travel |
Left and right stroke (X) |
mm |
850 |
|
|
Front and rear travel (Y) |
mm |
600 |
|
|
Up and down stroke (Z) |
mm |
600 |
g
|
Spindle |
Spindle taper hole (specification/installation size) |
mm |
BT40 |
|
|
Spindle maximum speed |
rpm |
0- 10000rpm |
|
|
Spindle transmission mode |
|
Belt |
|
|
Distance from spindle center to column guide |
mm |
500 |
|
|
Distance from spindle nose to work table |
mm |
150-780 |
|
Linear guideway |
X/Y/Z axis ball screw specifications |
|
4012/4012/4012 |
|
|
X-axis guide/line rail specifications |
|
P-Class Sliding Roller Guideway 45 |
|
|
Y-axis guide/line rail specifications |
|
P-Class Sliding Roller Guideway 45 |
|
|
Z-axis guide/line rail specifications |
|
P-Class Sliding Roller Guideway 45 |
|
motor |
X.Y.Z motor connection |
|
belt type |
|
|
Spindle motor parameters (power) |
|
11 |
|
|
X.Y.Z axis motor parameters (power ) |
|
3/3/3 |
|
|
Spindle Cooler Capacity (Gear/750) |
|
250 |
|
|
Machining Cooling Pump Horsepower |
w |
450W |
|
feed |
X. Y. Z-axis machining speed |
mm/min |
18/ 18/ 18 |
|
|
X.Y.Z axis rapid traverse speed |
m/min |
36/36/36 |
|
Power / Air Pressure |
air source |
kg/cm² |
6kg/cm² |
|
|
power requirements |
|
20KVA |
w
w
va
Machine features
The three axes of the Fanuc cnc milling machine adopt high-rigidity roller linear slide rails, which effectively improve the load-bearing and rigidity
Rear chip removal system is adopted, and rear flushing system is also configured
The machining center has a humanized operation panel, which makes the operation more convenient
Especially suitable for the processing of auto parts and IT parts
The machine occupies a small area, effectively saving space
upgrade configuration
powerful ring spray
Fanuc cnc milling machine is Equipped with powerful ring spray device,
It can meet the cooling and chip flushing process required by daily workpieces
NO.2
Integrated pneumatic board
The spindle, tool magazine, pneumatic components, etc. are integrated and unified management, and the layout is clear and easy to operate.

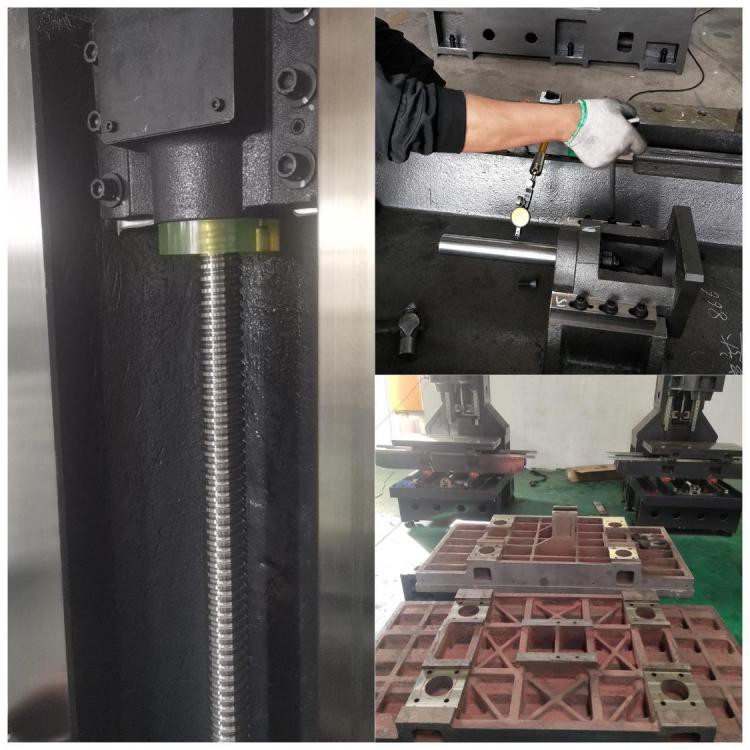

Featured Bed Castings
The casting of the bed is made of HT300 gray iron resin sand, which is optimized through finite element analysis, and the herringbone column
Good stability, reasonable structure layout, strong rigidity
Machine detection
Machine tool level measurement prevents bed deformation and ensures
Machine tool precision
Dynamic balance detection
Avoid spindle wear, improve spindle accuracy, and ensure spindle life
circle detection
It is tested by the British Renishaw circular tester to ensure the accuracy
Laser detection
Fast and accurate detection of positioning errors and error compensation to ensure the accuracy of processed parts
